AMTS Rail Clip Prisms
Rail clip prisms are special purpose survey prisms used with AMTS track monitoring systems to provide early warning of unwanted changes in track geometry. Datasheet
![Rail Clip Prism Rail Clip Prism](https://www.geo-instruments.com/wp-content/uploads/track-clip-logo-350-269.jpg)
Rail Clip Prism
![Rail Clip Prisms on Track Rail Clip Prisms on Track](https://www.geo-instruments.com/wp-content/uploads/prisms-on-track-350x269-1.jpg)

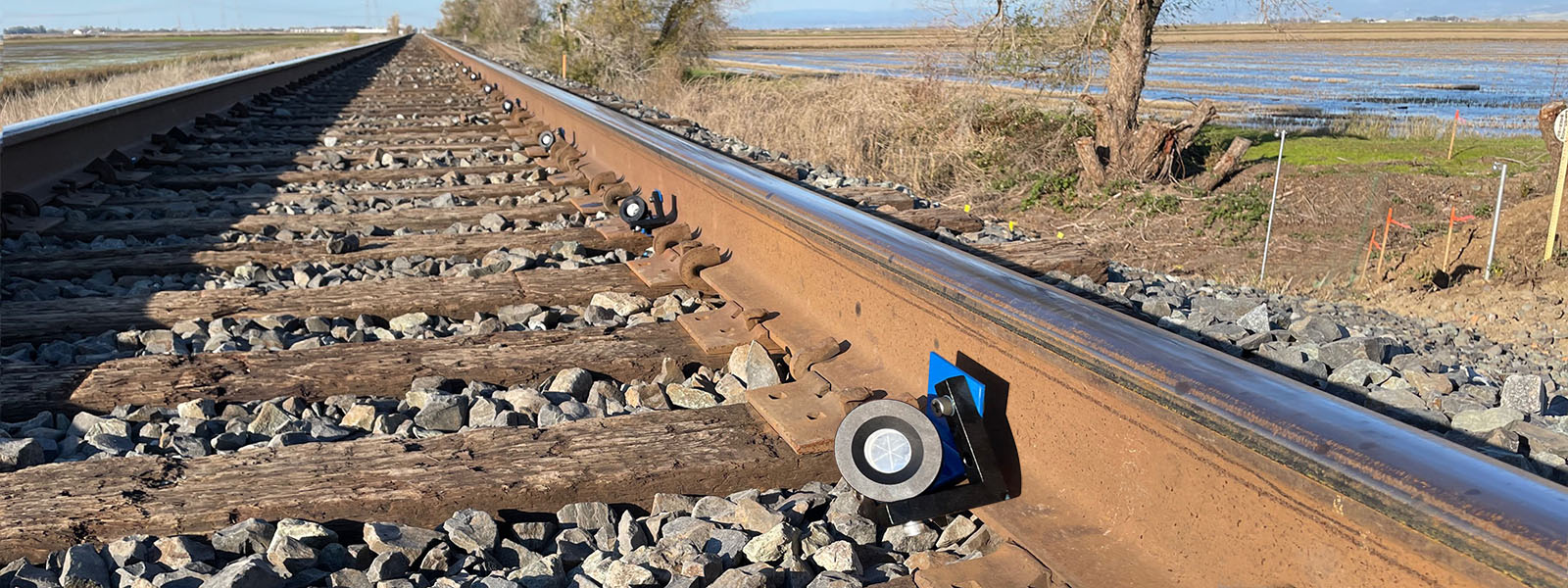

Installed Prisms
![AMTS monitoring rail clip prisms AMTS monitoring rail clip prisms](https://www.geo-instruments.com/wp-content/uploads/AMTS-Track-350-269.jpg)
AMTS Monitoring Rail Clip Prisms
Advantages
Easy Installation: Position rail clip and tighten screws. No drilling or wiring required.
Durable: Simple, waterproof construction with no moving parts or electronics.
High Performance: Coated optics for better performance.
Cost Effective: Low cost per monitored point compared to conventional sensors.
Installation
Rail clip prisms are typically installed on both rails and spaced along the track at specified intervals. A single AMTS can monitor rail clip prisms up to 600 feet away, assuming good angles of view and clear line of sight.
- Fit the rail clip to the rail. Tighten the hex screws until the clip is firmly attached.
- Attach the L-bar, adjusting its angle so that the prism will directly face the AMTS.
- Attach the prism to the L-bar, aiming it at the AMTS.
Specifications
Rail Clip: Powder-coated steel, stainless steel screws. Available in 5.5 or 6-inch sizes.
L-Bar Bracket: black anodized aluminum, 3 inch arms.
Prism: 25 mm optical glass with anti-reflection and copper coatings.
Prism Offset: -25.5 mm for Topcon, Trimble,etc. +8.92 mm for Leica.
