Laser-Tilt Sensors
Laser-Tilt sensors provide distance & tilt measurements for monitoring stability, deflections, and deformation. Datasheet
![Laser-Tilt sensor on bridge Laser-Tilt sensor on bridge](https://www.geo-instruments.com/wp-content/uploads/laser-displacement-sensor-bridge.jpg)

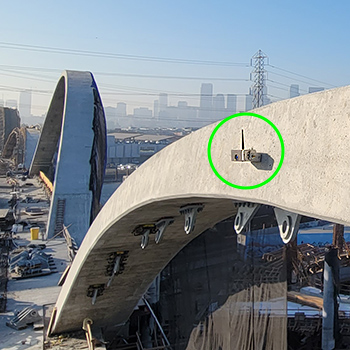

Laser-Tilt sensors monitored deflection of arches as they took on the load of the bridge deck.
![Laser-Tilt Sensor monitoring floor slab Laser-Tilt Sensor monitoring floor slab](https://www.geo-instruments.com/wp-content/uploads/laser-ceiling-floor-distance.jpg)
Laser-Tilt sensors monitored potential deflection of the floor slab as a TBM passed beneath the building.
![Wireless laser-tilt on bridge pier Wireless laser-tilt on bridge pier](https://www.geo-instruments.com/wp-content/uploads/laser-tilt-bridge-350.jpg)
Laser-Tilt sensors monitored the stability of bridge piers while repairs were made to the bumper system.
Laser-Tilt Sensor Components
The laser-tilt sensor components include a laser distance sensor, a tiltmeter, and a self-powered, wireless controller, all housed in a compact enclosure.
The laser sensor measures the distance between itself and a non-reflective natural-surface target. Changes in the measured distance indicate that displacement has occurred.
The tilt sensor measures inclination relative to gravity and reports rotation from the horizontal plane. Tilt measurements can also confirm that sensor mounting point is stable.
The wireless controller is a "node" that obtains readings from both sensors and transmits the measurements to an internet gateway. Some controllers offer full datalogging capabilities.
Laser-Tilt Sensor Applications
- Monitoring the stability of structural elements during adjacent repairs or excavations.
- Monitoring deformation of tunnels and culverts during adjacent construction.
- Monitoring deflection of structural elements during transfer of loads.
- Monitoring deflection of floor slabs during passage of TBM.
- Monitoring rotation from horizontal in two axes.
- Tiltmeter Applications
Laser-Tilt Sensor Specifications
![Flatmesh Laser-Tilt Sensor Flatmesh Laser-Tilt Sensor](https://www.geo-instruments.com/wp-content/uploads/flatmesh-laser-tilt-350.jpg)
FlatMesh Laser-Tilt Sensor
Laser: Class 2, 655nm, visible red.
Range: 165 feet to natural surface target.
Resolution: 0.004 inch.
Repeatability: ±0.006 inch.
Tilt Sensor: MEMS x three axes.
Range: ±90° in each axis.
Resolution: 0.0001°.
Repeatability: ±0.0005°.
Battery life: 8 years at 30 minute intervals. 10 years at 1 hour intervals.
Environmental: IP68 at 1m for 24 hours, -10°C to +50°C.
Controller: FlatMesh Node with Read & Send functions. Uses 2.4 Ghz radio and Senceive FlatMesh protocol to send measurements to internet gateway.
![LoRaWan Laser-Tilt Sensor LoRaWan Laser-Tilt Sensor](https://www.geo-instruments.com/wp-content/uploads/lorawan-laser-tilt-350-1.jpg)
LoRaWan Laser-Tilt Sensor
Laser: Class 2, 655nm, visible red
Range: 492 feet to natural surface target.
Resolution: 0.004 inch.
Repeatability: ±0.006 inch
Tilt Sensor: MEMS x three axes.
Range: ±90° in each axis.
Resolution: 0.00001°.
Repeatability: ±0.0003°.
Battery life: 3 years at 5 minute intervals. 10 years at 1 hour intervals.
Environmental: IP 68 at 2m, 2 hours, -40°C to +85°C.
Controller: LoRaWan datalogger with Read, Record, & Send functions. Stores 100k readings of both sensors. Uses 900Mhz radios and World Sensing protocol to send measurements to internet gateway.
![Laser-Tilt Sensors in Culvert Laser-Tilt Sensors in Culvert](https://www.geo-instruments.com/wp-content/uploads/culvert-convergence-350.jpg)
Laser-Tilt sensors monitored potential deformation of culvert during highway repairs above.
![Laser-tilt sensor monitoring underground walkway Laser-tilt sensor monitoring underground walkway](https://www.geo-instruments.com/wp-content/uploads/laser-tilt-underground-walkway350.jpg)
